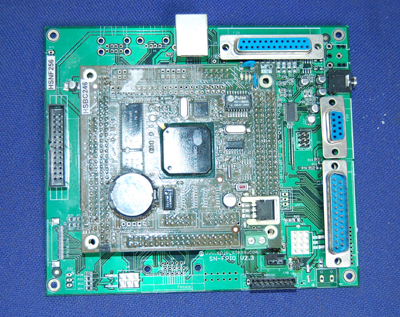

SBC 9315

SBC 9315 is a enhanced version of SBC 9302 which has an additional features as Unique MAC ID is assigned to each board, touch-screen interface, TFT or STN LCD interface, VGA port for direct connection to standard CRT / LCD monitors and audio in and out for direct connection to microphone and speakers. SPJ embedded technologies has created the SBC 9315 as an inexpensive, feature packed embedded Single Board Computer (SBC) based on Cirrus Logic EP9302 processor, which has ARM920T core.

• SBC9315 Specifications
  • Hardware:
    • ARM9 processor (EP9315) @ upto 200 MHz
    • On-board 8 MB Flash, 32 MB SDRAM
    • Optionally, upto 16 MB Flash and upto 64 MB SDRAM
    • 3 UARTs: 2 RS232 and 1 selectable RS232 / RS422 / RS485.
    • RJ45 Ethernet LAN interface
    • Unique MAC ID is assigned to each board
    • 3 USB Host interface ports
    • PC/104 form factor.
    • PC/104 interface: same footprint, similar bus with 3.3V signal levels.
    • Touch-screen interface.
    • All GPIO (3.3 Volts level) on connector.
    • IDE interface for hard-disk or DOM.
    • JTAG interface.
    • TFT or STN LCD interface.
    • VGA port for direct connection to standard CRT / LCD monitors.
    • Audio in and out for direct connection to microphone and speakers.
    • Battery backed up RTC
  • Software:
    • Runs embedded Linux or WindowsCE.
    • Sample programs available.
    • Optional accesories:
      • 5VDC 1 A power supply.
      • Set of cables and connectors for USB, Ethernet, Serial etc.
      • erial cable for connection to PC.
      • 28MB DOM.
  • Support:
    • Technical support available through web-site (FAQ).
    • Additional support available over email at extra cost.
    • General:
      • Indigenously designed, Developedd and manufactured.
